Fault Rupture and Structural Damage in Golcuk and in Ford Otosan Plant (click to enlarge)

By M.Nuray Aydinoglu, Kemal Beyen and Hafez Keypour

It has been observed that almost all of the damage at the Ford Otosan Car Plant (under construction) is a result of the displacement caused by fault rupture and the displacement field in its immediate vicinity.

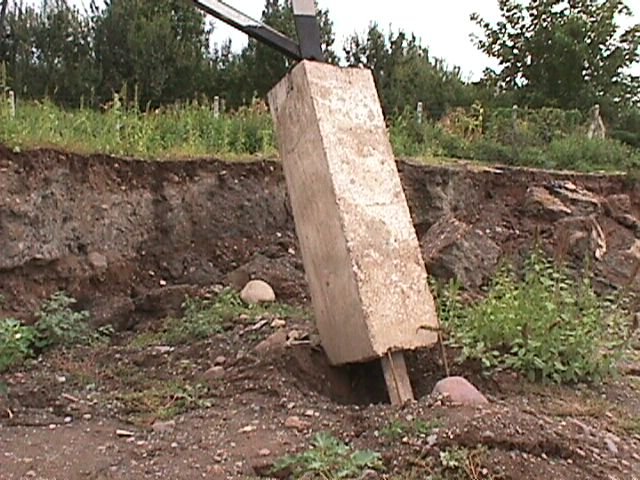

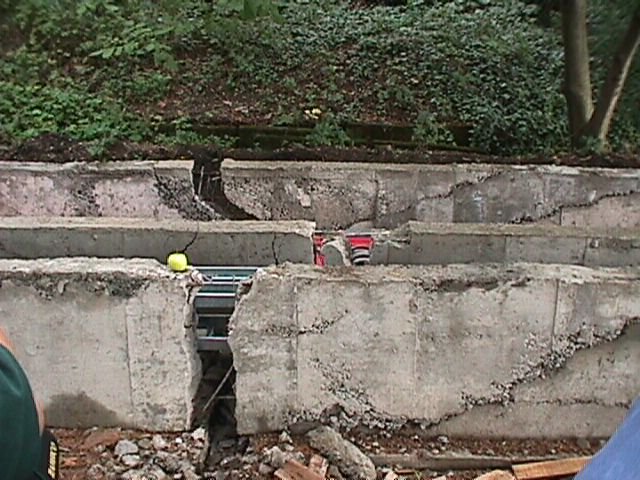

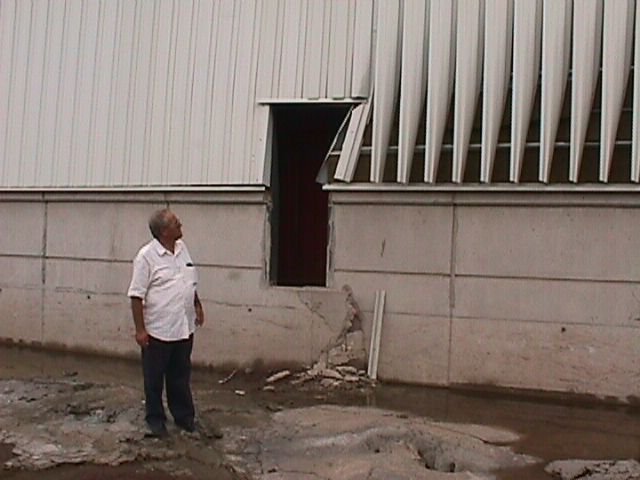

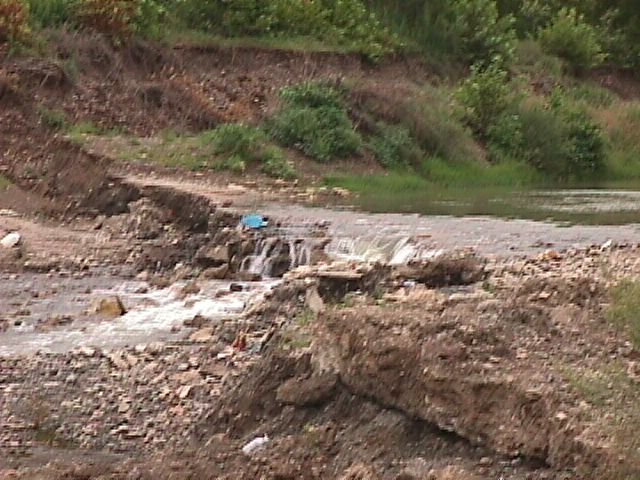

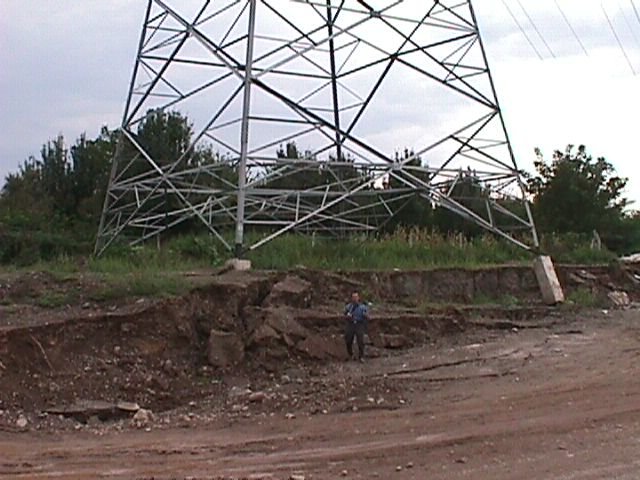

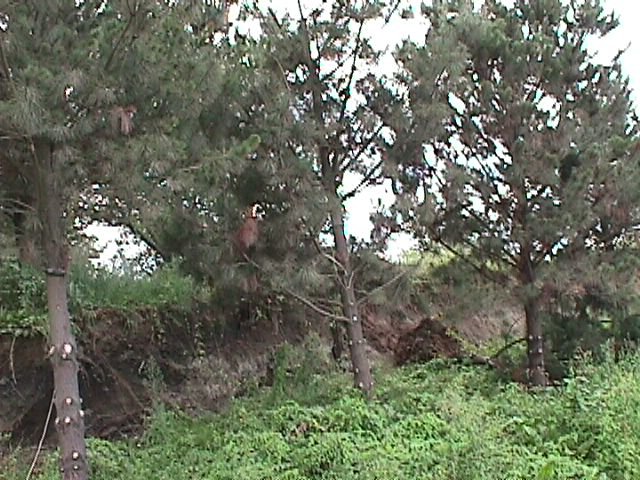

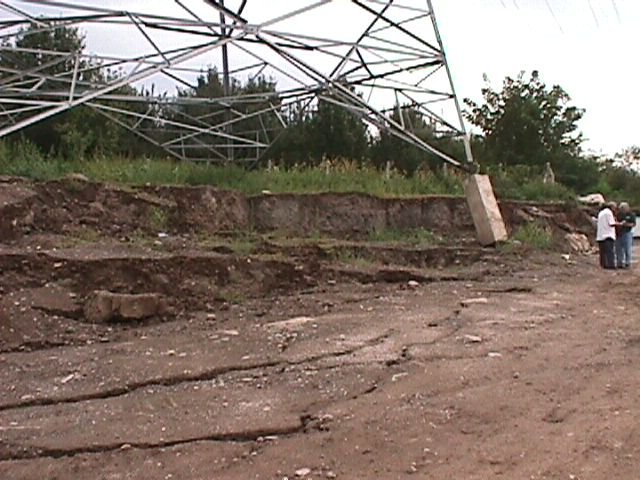

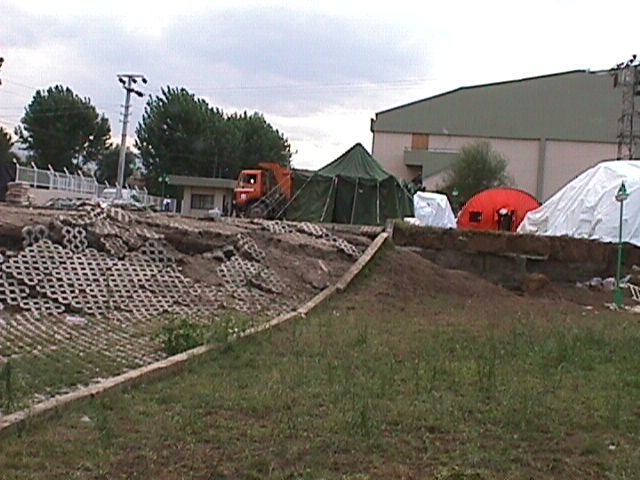

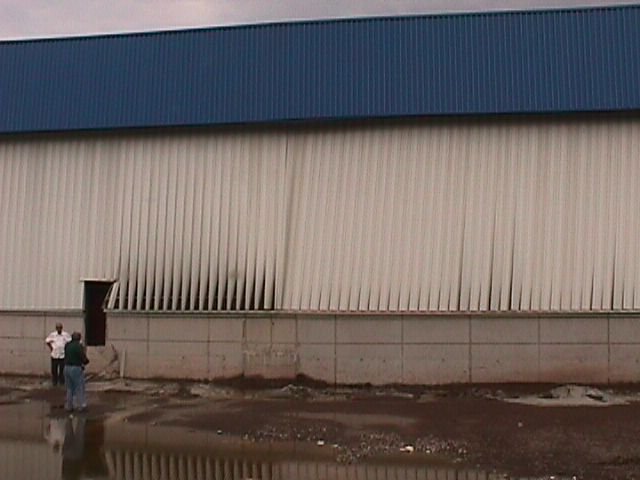

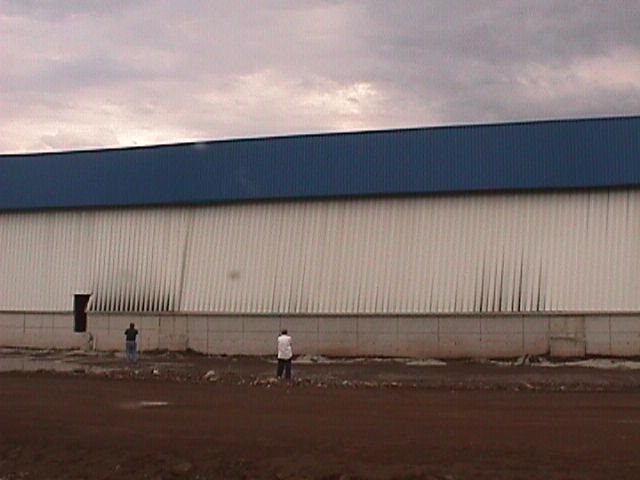

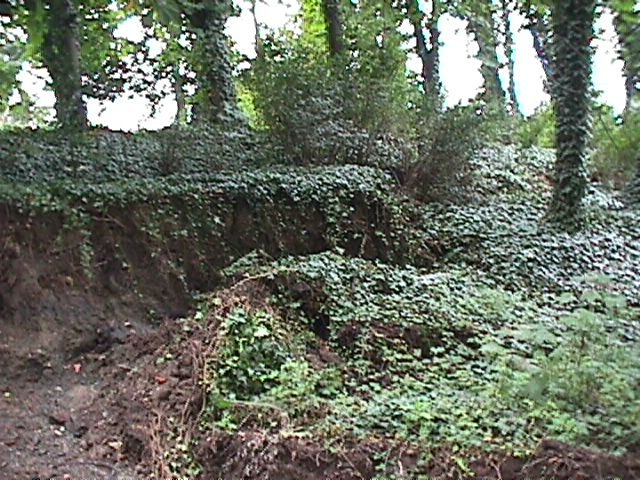

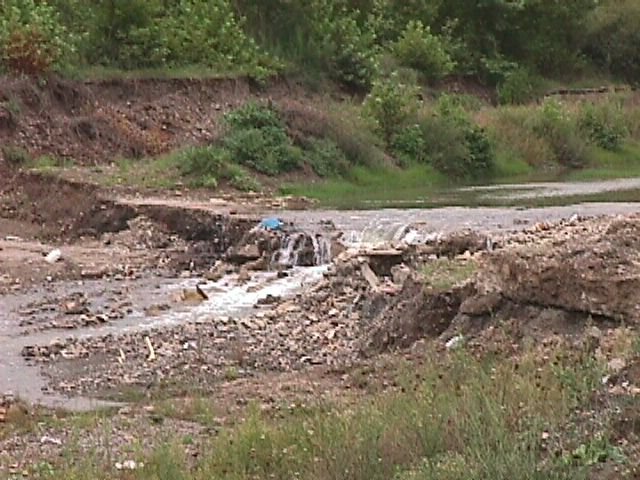

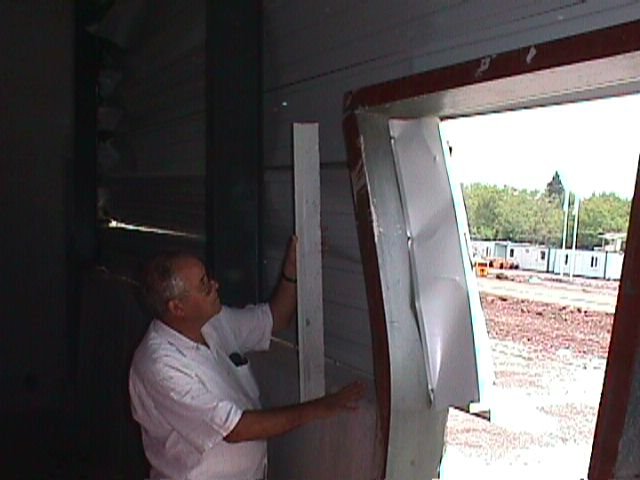

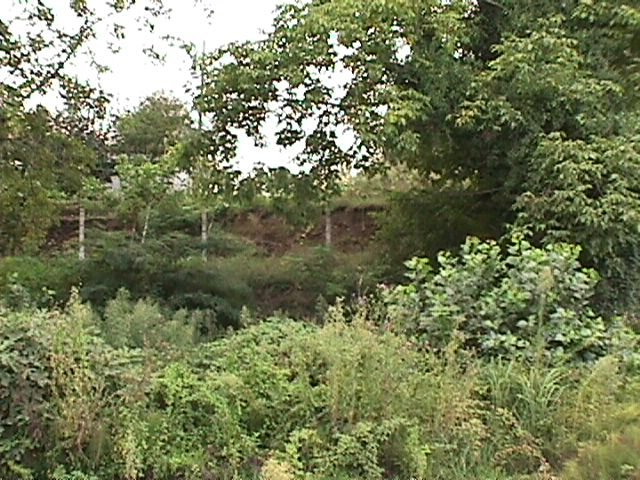

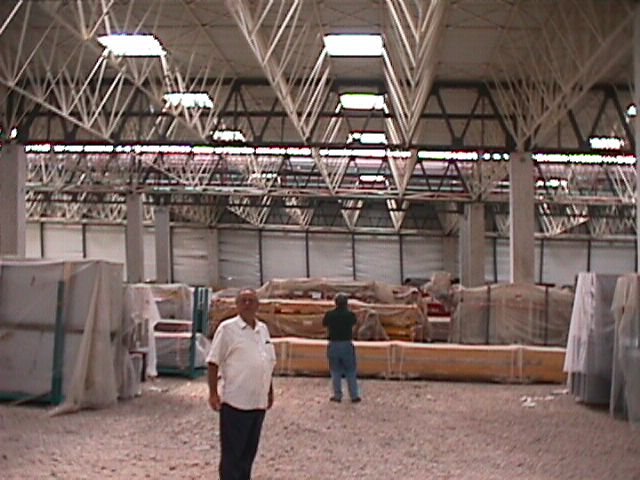

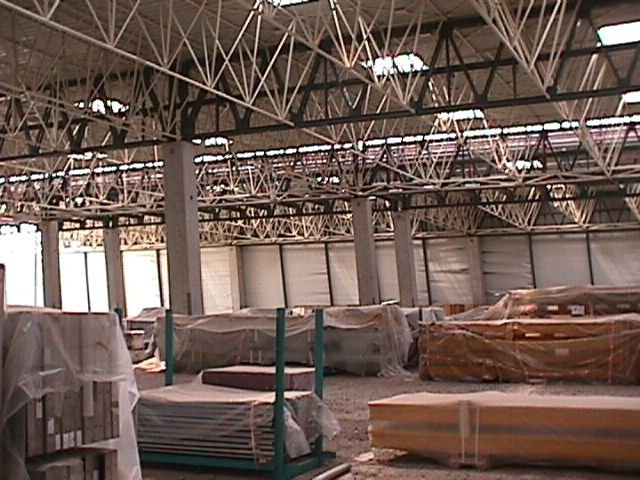

Following pictures show the fault rupture in the vicinity of the plant and the structural deformations/breaks in the body shop building.

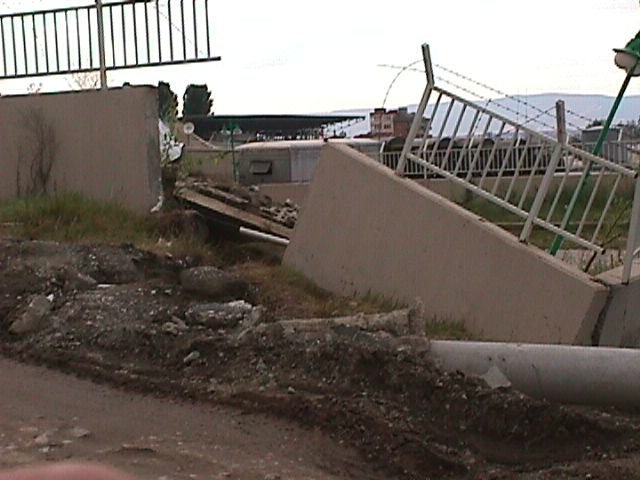

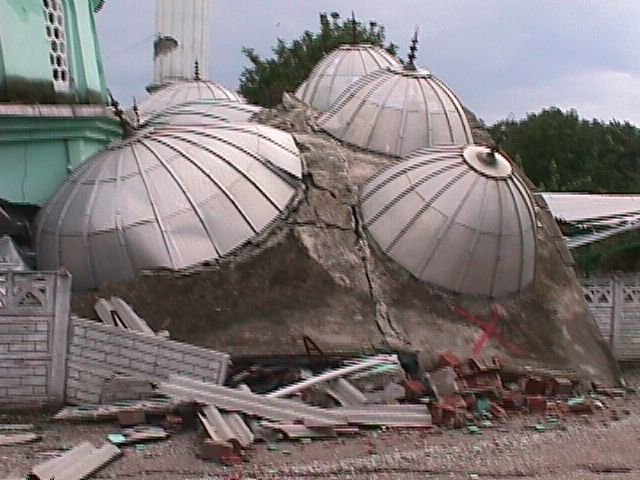

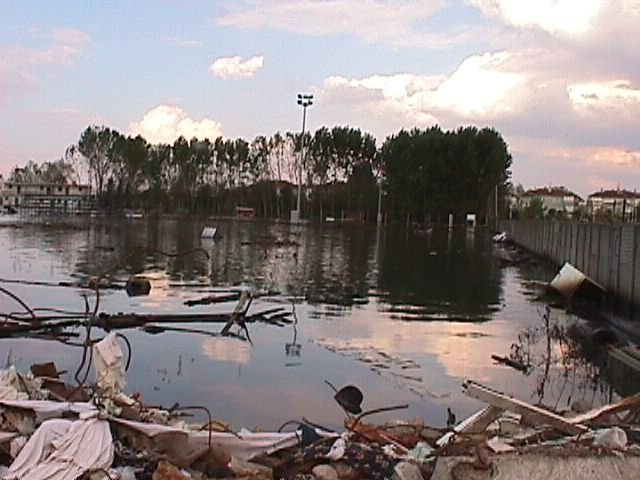

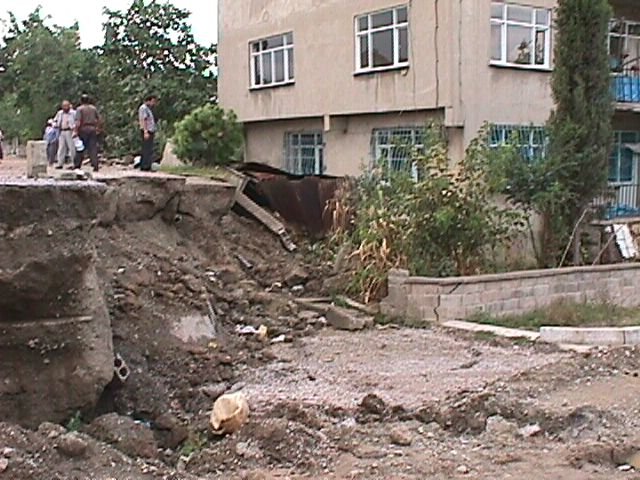

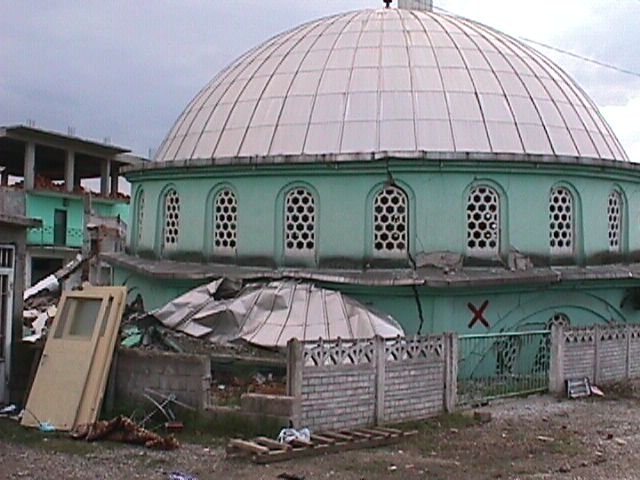

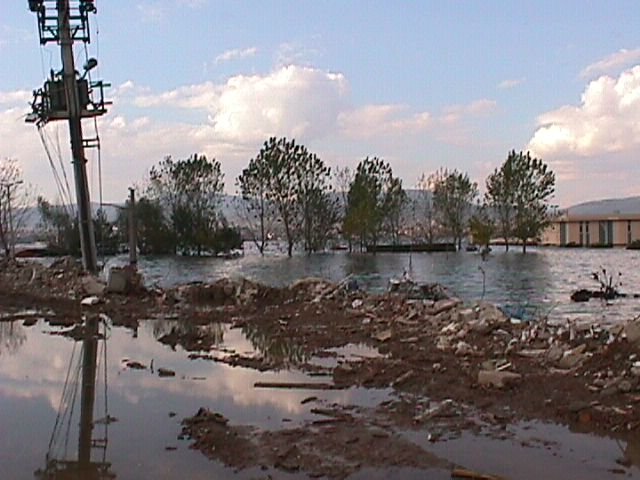

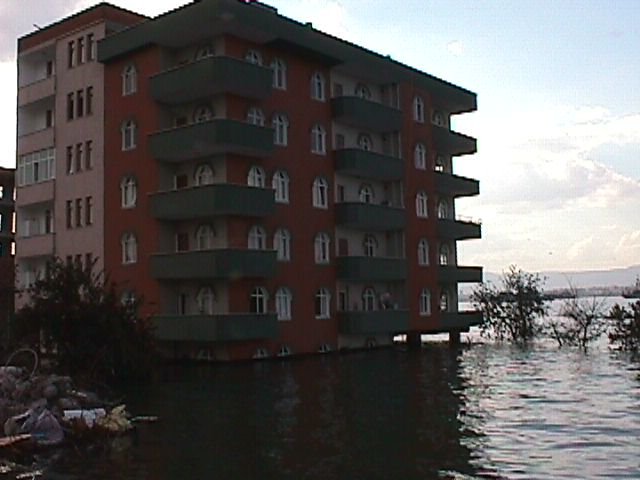

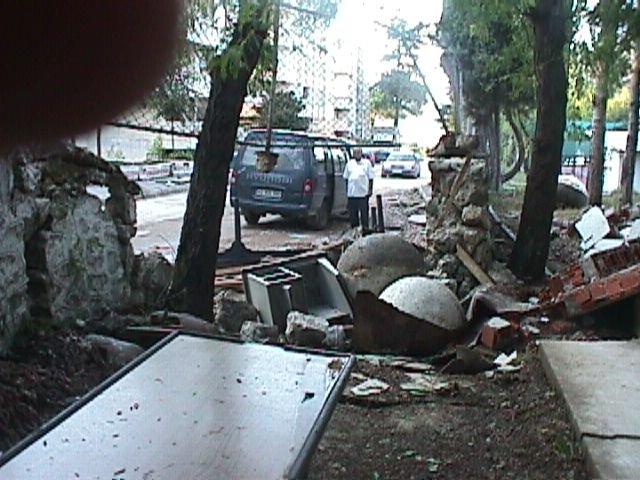

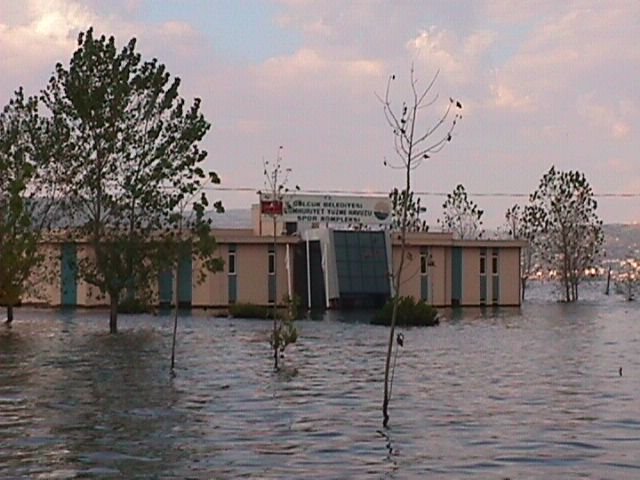

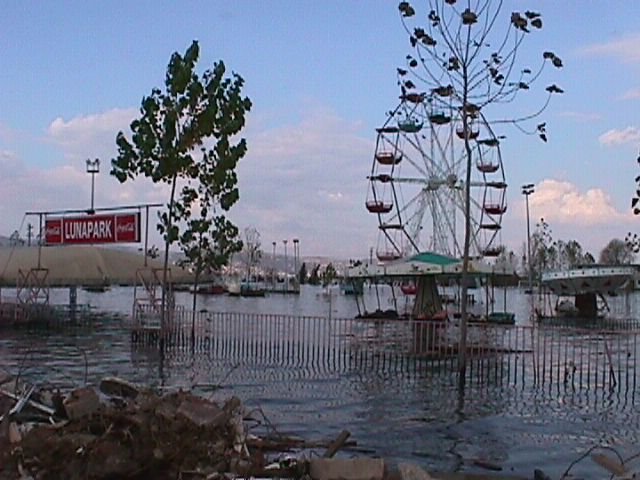

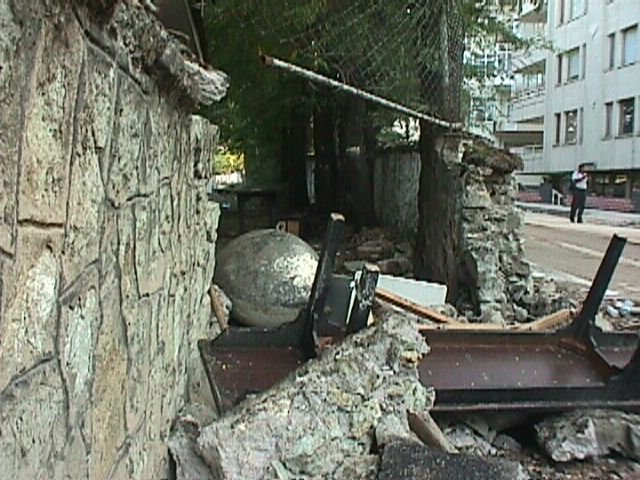

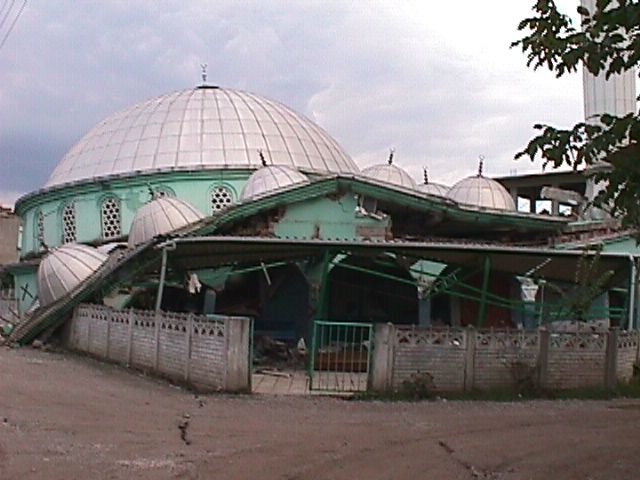

Golcuk is the most heavily damaged town where the macroseismic epicenter is located.Following pictures illustrate the behaviour of several types of structure directly on the fault rupture or in its immediate vicinity
